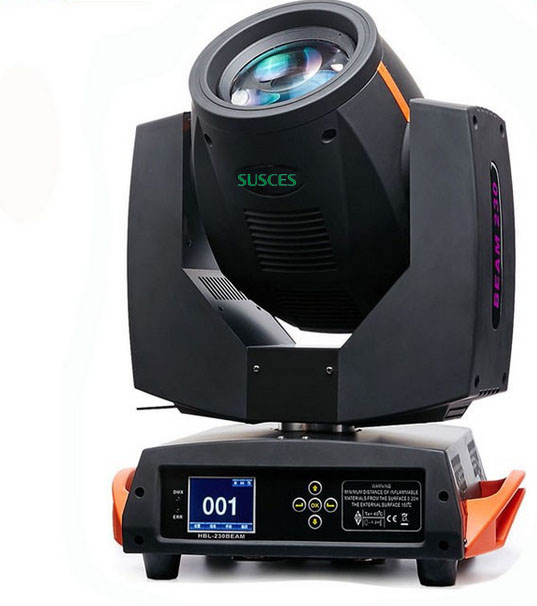

    Upgrade 230W Beam moving head light

    KTV LIGHT ,BAR LIGHT ,STAGE LIGHT
    Upgraded version of 230W beam light
    Type: beam light / pattern light series
    Model: SC-230A
    16/20 channel selection mode. ? Lamp Model: YODN OSRAM 7R
    Power: 230W luminous flux of 7950lm, color temperature up to 8000K.
    Detail Info

    ? Color plate: a color plate, each color plate consists of 14 color plates,

     ? Pattern plate: 17 pattern effects.

      ? Effect wheel: can do 8 prism or 16 prism, the effect of moving, atomization function.

    Double prism 8 + 16 Ling mirror colorful effect, honeycomb prism

    ? 0-100% mechanical dimming,

    Support mechanical strobe and adjustable speed strobe effect, support strobe macro function.

    ? Lens group optical system,

    Electric focus, beam angle 0 ~ 4 °.

    ? With a photoelectric reset system, reset can be automatically retrieved when an accident occurs.

      ? Horizontal 540 °, resolution 8Bit / 16Bit ?

     Vertical 270 °, resolution 8Bit / 16Bit.

    ?Overheating protection.

    ? Power supply: 100-240V, 50 / 60Hz

    ? Power: 380W ? IP protection class: IP20

    ? Inductive ballast and AC / DC switching power supply.
