    Heilongjiang tricks international hotel fog screen fog curtain 3D holographic effect display

    Date:2017/8/27 source:Sicheng Stagelight

    Guangzhou Si Cheng Lighting Audio Technology Co., Ltd. is a professional production of fog screen, mist machine, fog machine direct manufacturers, the following describes the overall understanding of the principle and application of fog screen and structure:

    Heilongjiang tricks international hotel fog screen fog curtain 3D holographic effect display

    Fog screen by the fog screen generator to produce water mist, composed of water mist imaging media, can directly feel and can cross the projection imaging system. Fog screen implementation method is similar to projection

    Heilongjiang tricks international hotel fog screen fog curtain 3D holographic effect display

    But without any help on the screen, the "fog screen" mainly with the presence of particles in the air, so that static or dynamic images displayed in a very thin air layer, people can pass through without affecting the image display.

    Heilongjiang tricks international hotel fog screen fog curtain 3D holographic effect display



    Fog screen principle


    Heilongjiang tricks international hotel fog screen fog curtain 3D holographic effect display

    Water through the filter, through the solenoid valve control, ultrasonic atomization generator to pure water, the formation of water mist, and then use the fan to the water mist leads, through the model, the formation of fog screen. This is the basic principle of the work of this device.

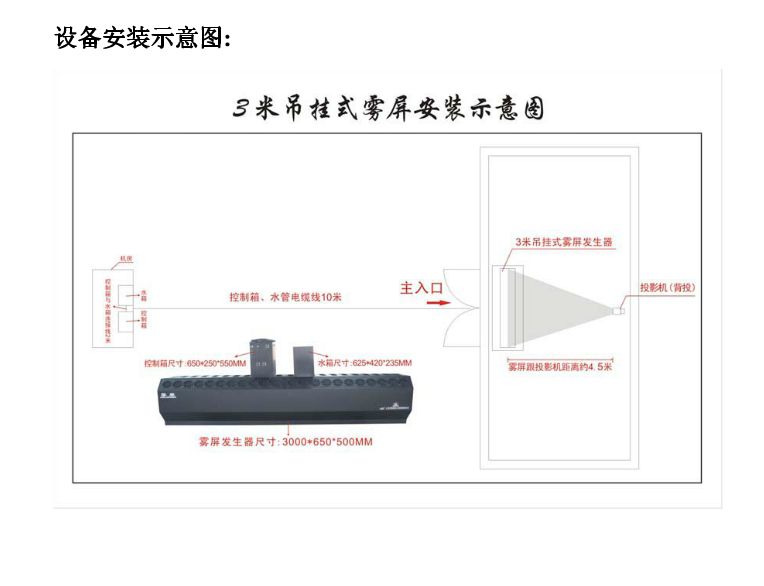

    Around this basic principle, the schematic diagram of the device is as follows:

    Heilongjiang tricks international hotel fog screen fog curtain 3D holographic effect display In order to protect the environment at the same time in order to prevent the solid impurities plug the atomization generator nozzle, the external water into the equipment must be purified after processing, so the system additional filter device.
    Fog screen features

    1, fog screen system is the use of atomizing equipment to produce a large number of artificial fog, combined with the principle of air flow and can produce the formation of plane fog screen. Using the planar characteristics of its atomized screen as the optical path carrier. And then a special flow of vivid media flow on the carrier can be formed in the space illusory three-dimensional images, the formation of a three-dimensional three-dimensional image, giving a new three-dimensional visual enjoyment. People can in this empty image in the free shuttle, resulting in real people can enter the video screen of the illusory effect;
    2, fog screen system, the internal use of integrated ultrasonic movement, no mechanical drive, quiet no noise, high atomization efficiency, resulting in a certain concentration of negative ions, low failure rate, easy maintenance;
    3, the box with all stainless steel spray treatment, beautiful appearance, practical, and with a standard water outlet, water switch and overflow, automatic control of water level;
    4, do not need the traditional physical screen, people can directly penetrate the screen;
    5, fog raw materials: ordinary tap water, environmental protection and energy conservation;
    Display features

    Fog screen technology is the biggest selling point of its charming way of showing a single fog screen is enough to attract the eyes of tourists. Specifically, there are several characteristics:
    1, do not need the traditional physical screen, people can directly penetrate the screen
    2, you can play video images and other video images
    3, the program source is rich, the user can replace the program, do not need special production professionals
    4, the image is clear, dynamic
    5, the image shows no delay
    6, each fog screen unit can be used alone, can also be used in combination to form a variety of shape size, such as plane, arc, etc.
    7, fog screen gas non-toxic and tasteless, no pollution, will not cause any damage to the human body, visitors can interact with the fog screen
    8, fog screen fog will not accumulate in the room stay, power off, instantly disappear
    9, the venue installation requirements, can be installed in the hall, aisle
    10, the project safe and reliable, no man-made obstacles, not broken
    Fog screen application place



    Heilongjiang tricks international hotel fog screen fog curtain 3D holographic effect display

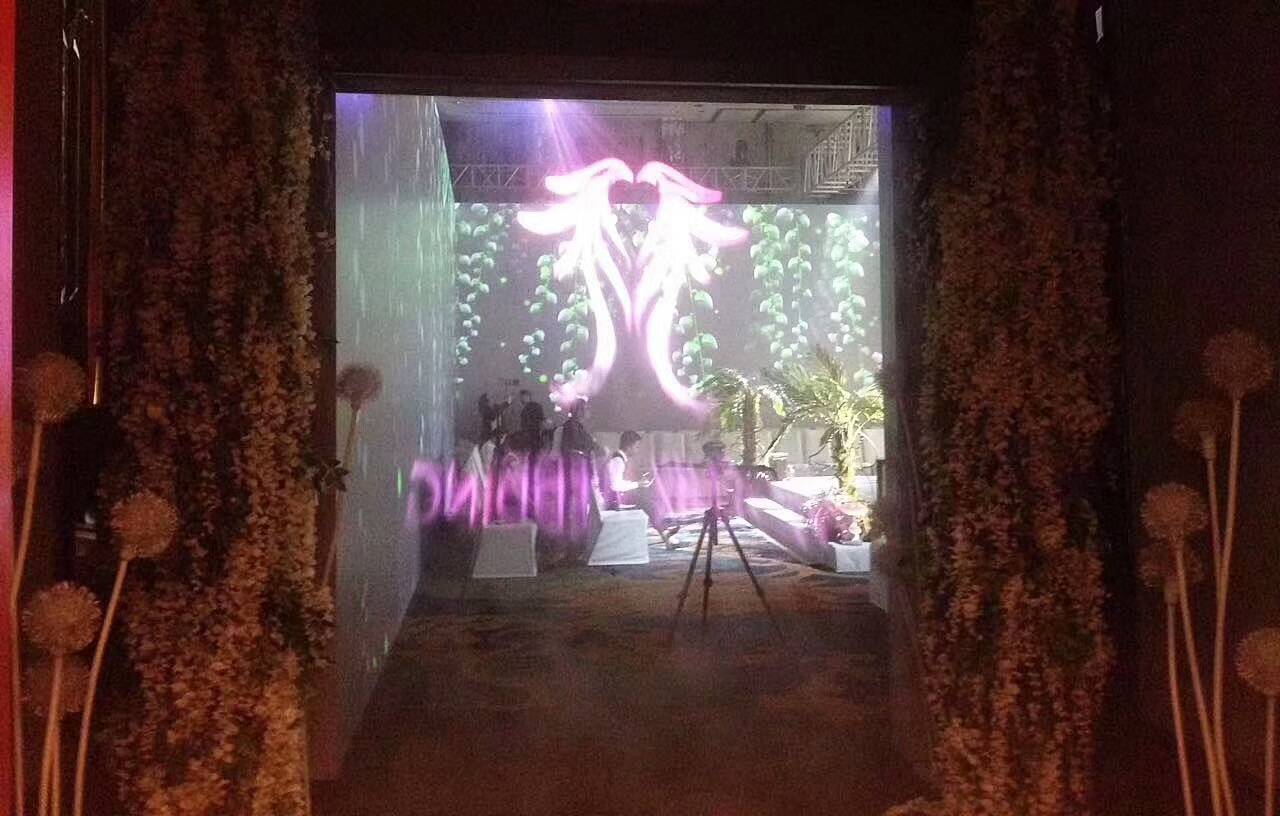

    fog screen system wedding application program
    Application place: wedding scene
    Work: In addition to conventional flowers, balloons, can be used as a new wedding theme recommended to the new.
    Advantages: in a novel way turns to play new sweet memories, creating a dream atmosphere.
    fog screen system exhibition center application program
    Application place: Convention center reception
    Work: In addition to the exhibition posters, journal, as a new form of media display. Play this exhibition information and exhibitors, sponsors to promote the image
    Advantages: to provide exhibitors a new advertising situation, is conducive to the release of information exhibition.
    fog screen system exhibition hall application program
    Application place: exhibitors booth
    Work: the companys promotional film, real-time live activities to play
    Advantages: the scene is magnificent, eye-catching, extended visual effects, immersive display, to the visitors a huge visual impact

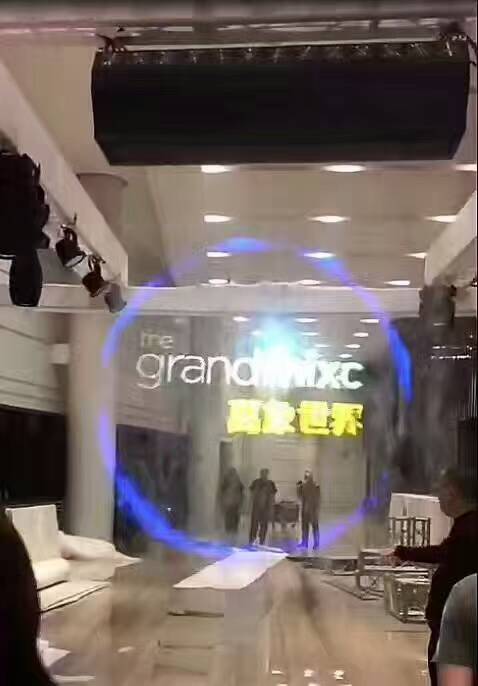

    fog screen system shopping malls / hotel applications
    Application places: shopping malls / hotel in the hall, conference hall
    Work: During the event, play the relevant image of the business; during the inactivity, advertising
    Advantages: shopping malls / hotel entertainment new experience, more effective and convenient to publish the event information
    fog screen system bar / KTV application program
    Applications: stage, dance floor
    Work: create an atmosphere
    Advantages: see but can not touch the wonderful picture, dancers to see the fashion dynamic cool spicy picture, you can also directly through these images, do a close contact
